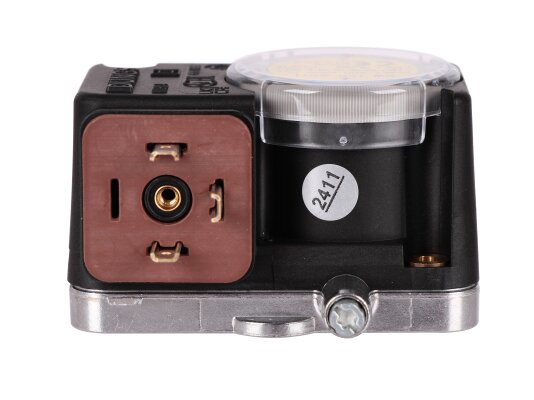

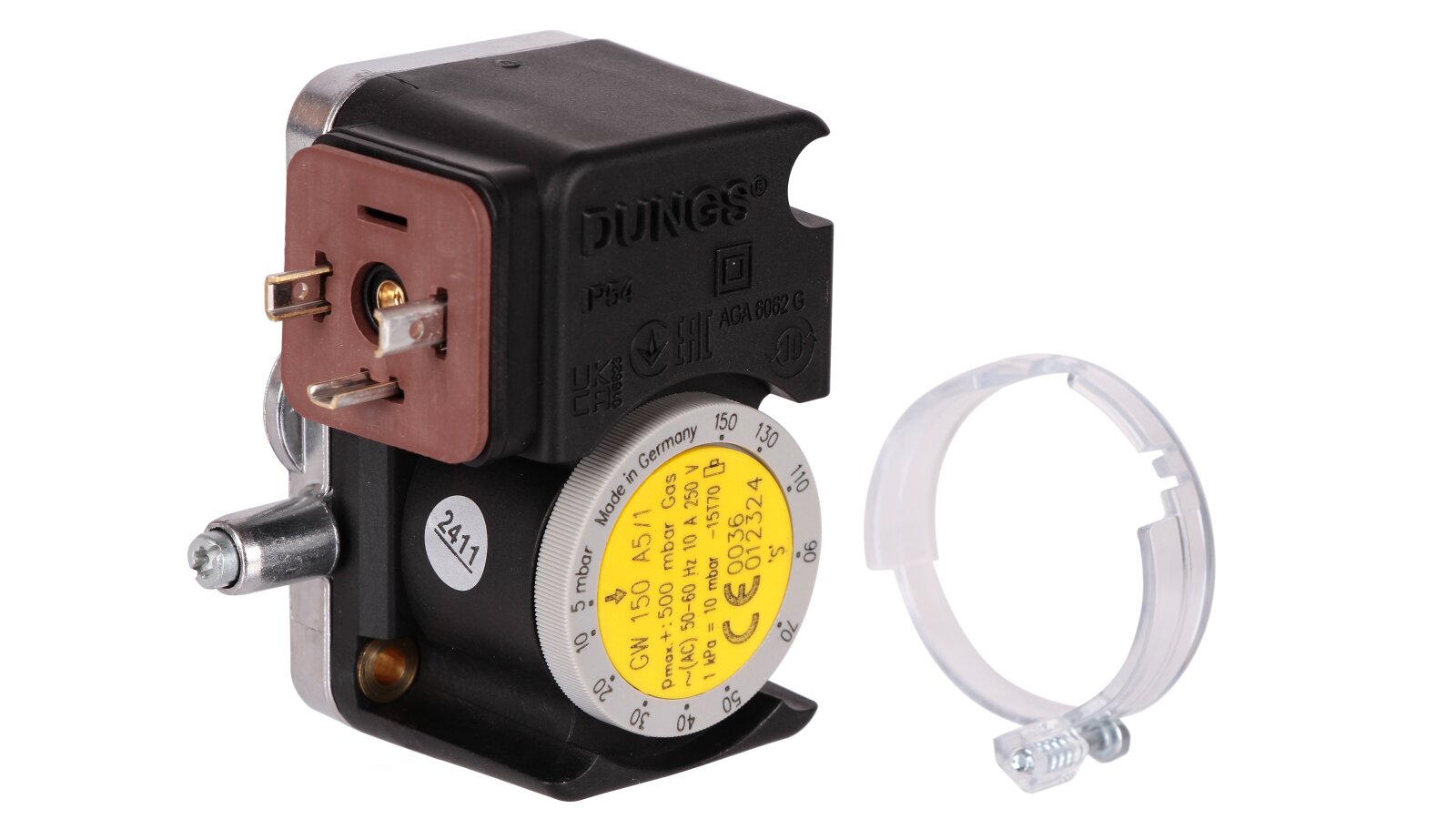

Pressure switch Dungs GW 150 A5/1

Dungs241247

备用零件号

Dungs 272363

¥850

Pressure switch Dungs GW 150 A5/1, Part Number: 241247, Alternative MPN: 272363.

关于产品

查看描述

Maximum working pressure 500 mbarResponse range from 0 to 10 mbarAdjustment range from 5 to 150 mbarOperating ambient temperature from -15 to 70 °CType of connection DIN plugFor controlling excess pressure

特性

制造商零件号: 241247Maximum working pressure: 500 mbarResponse range: from 0 to 10 mbarAdjustment range: from 5 to 150 mbarOperating ambient temperature: from -15 to 70 °CType of connection: DIN plugFor controlling: excess pressureConnection type: Rp 1/4"Degree of protection: IP54Working environment: flammable gases, air

有关技术特性、外观和产品颜色的信息仅供参考，基于发布时的最新信息

配件和备件

CN¥80
Dungs 电气连接插头 210318

此产品来自以下系列

Pressure switch Air Pressure Switches Gas Pressure Switches

Dungs

品牌

Germany — 品牌所在地

Germany — 原产国

包装信息

Weight, kg:: 0.2
Width, cm:: 6.2
Height, cm:: 4.5
Length, cm:: 7.2
