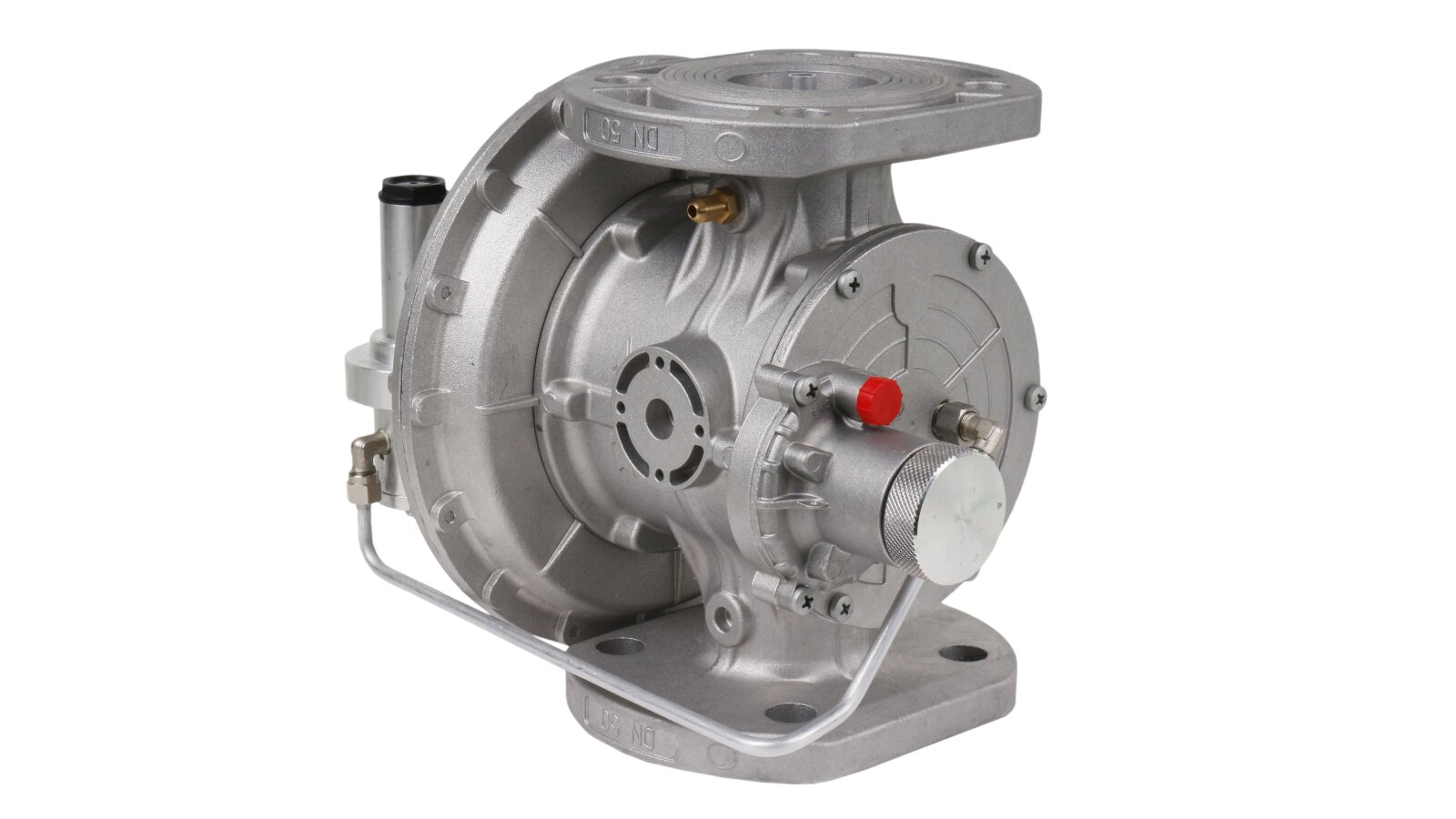

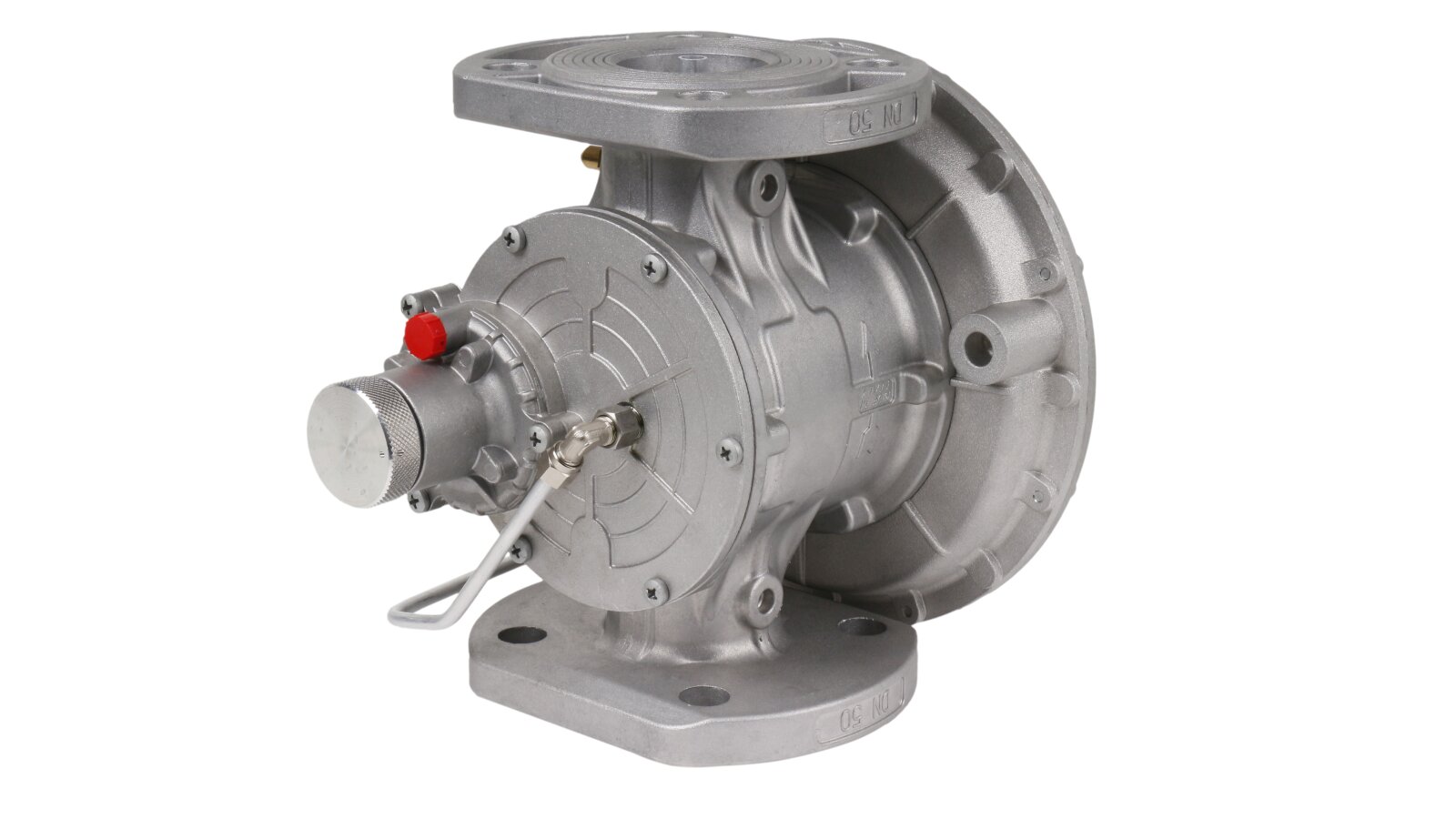

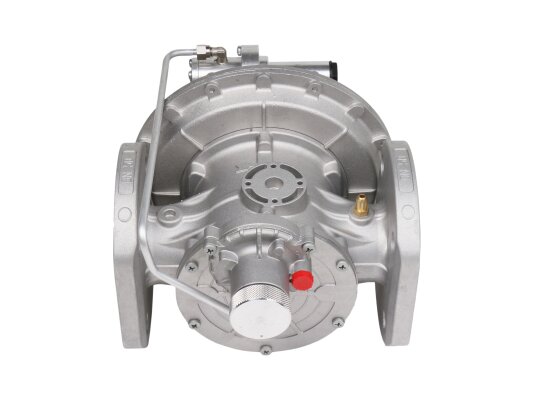

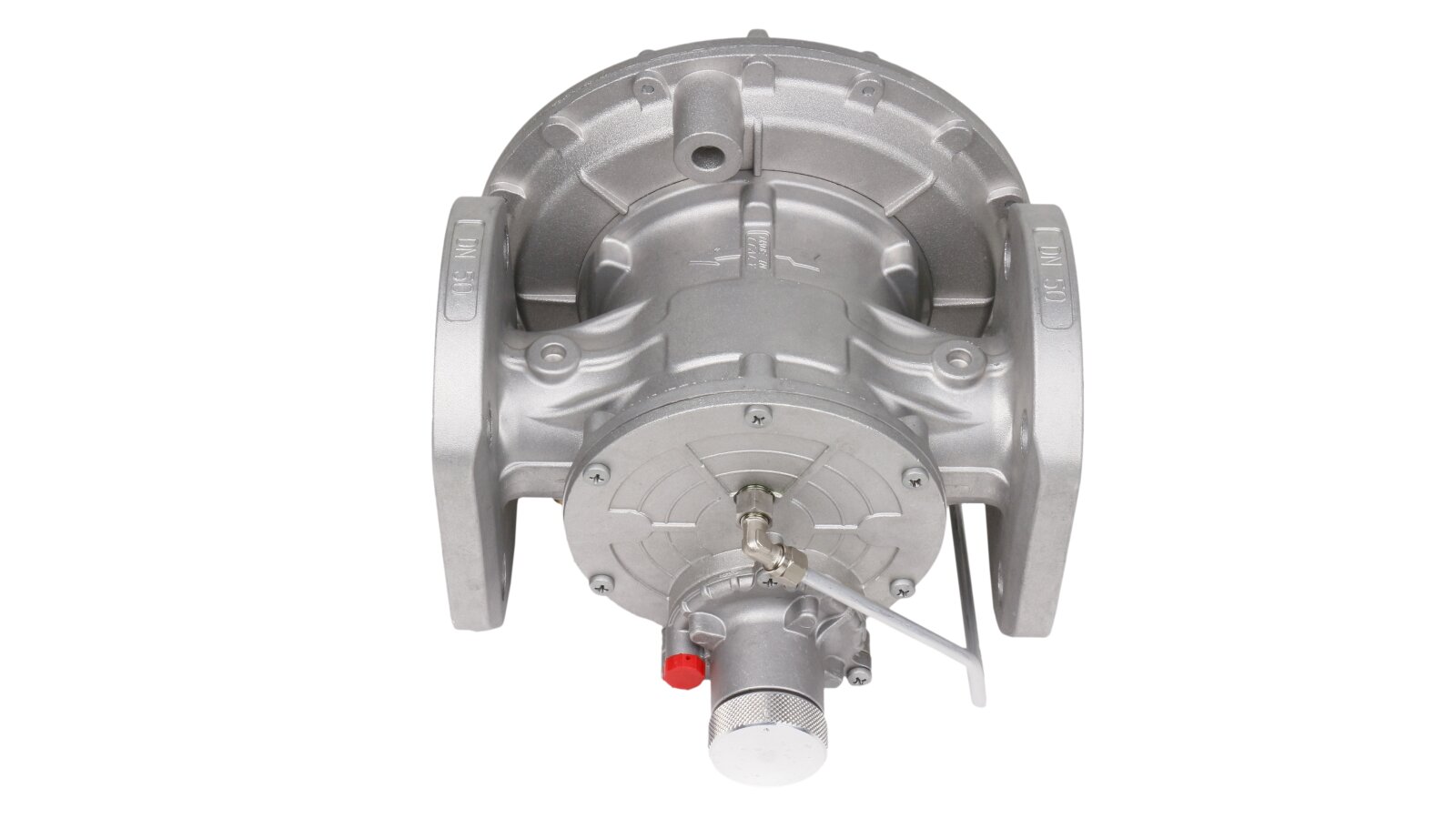

Gas pressure regulator Madas RG/2MBHZ DN 50 FL

MadasRBH50Z 120

备用零件号

УТ000002467

¥17,600

Gas pressure regulator Madas RG/2MBHZ DN 50 FL, art: RBH50Z 120.

关于产品

查看描述

Maximum operating pressure 6,000 mbarOutlet pressure range from 1,500 to 2,500 mbarOperating ambient temperature from -40 to 60 °CReset valve adjustment range from 1,500 to 3,000 mbarSetting the FCD for overrange from 1,800 to 3,300 mbarVoltage regulator setting to reduce from 800 to 1,700 mbar

特性

制造商零件号: RBH50Z 120Maximum operating pressure: 6,000 mbarOutlet pressure range: from 1,500 to 2,500 mbarOperating ambient temperature: from -40 to 60 °CReset valve adjustment range: from 1,500 to 3,000 mbarSetting the FCD for overrange: from 1,800 to 3,300 mbarVoltage regulator setting to reduce: from 800 to 1,700 mbarConnection type: DN 50

有关技术特性、外观和产品颜色的信息仅供参考，基于发布时的最新信息

此产品来自以下系列

Gas pressure regulators

Madas

品牌

Italy — 品牌所在地

包装信息

Weight, kg:: 5.44
Width, cm:: 23
Height, cm:: 31
Length, cm:: 23
